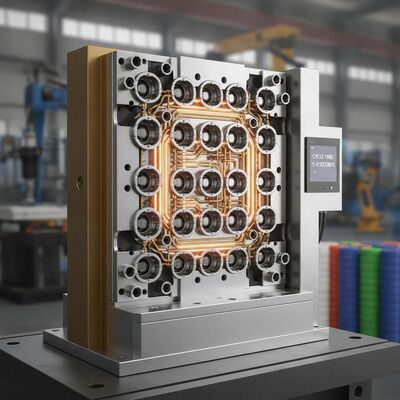

High Speed 48 Cavity Hot Runner Bottle Cap Injection Mold with 5-8 Seconds Cycle Time for Beverage Closures
| Lugar de origen | Xiamen, Fujian, China |
|---|---|
| Nombre de la marca | Creator |
| Certificación | ISO 9001:2015 |
| Número de modelo | KD-CAP-001 |
| Cantidad de orden mínima | 100 piezas |
| Precio | negotiable |
| Detalles de empaquetado | Cartón de exportación con bolsa de PE, paletizado para envío en contenedor |
| Tiempo de entrega | 25-35 días laborables para molde nuevo, 7-15 días para producción |
| Condiciones de pago | T/T, L/C, PayPal, Western Union |
| Capacidad de la fuente | 100000 piezas por mes |
Datos del producto
| Cavidad | 24-72 Cavidad | Tiempo de ciclo | 5-8 segundos |
|---|---|---|---|
| Estándar | CPO 1881/1810 | ||
| Resaltar | 48 Cavity Injection Mold,Hot Runner Bottle Cap Mold,5-8 Seconds Cycle Time Closure Mold |
||
Descripción de producto
High Speed Multi Cavity Plastic Bottle Cap Injection Mold 48 Cavity Hot Runner for Beverage Water Closure
Manufacturing high-speed multi-cavity injection molds for beverage and water bottle closures, Xiamen Creator Technology Co., Ltd. delivers 24 to 72 cavity hot runner molds producing 38mm and 48mm neck finish caps at cycle times of 5-8 seconds. Our molds are engineered for 24/7 continuous production in high-output bottling line supply chains.
Key Features & Advantages
- 24 to 72 cavity hot runner injection molds for bottle caps
- Cycle time optimized: 5-8 seconds per shot
- 38mm, 48mm, and custom neck finish compatibility
- Tamper-evident band and tear-off strip design integration
- PCO 1881, PCO 1810, and custom standard compliance
- Quick-change unscrewing mechanism for cap thread demolding
Technical Specifications
| Product | Bottle Cap / Closure Injection Mold |
| Cavity | 24 / 32 / 48 / 64 / 72 Cavity |
| Runner | Hot Runner with Valve Gate |
| Cycle Time | 5-8 seconds |
| Material | PP (Polypropylene), HDPE |
| Neck Size | 28mm, 30mm, 38mm, 48mm |
| Cap Type | Tamper-Evident, Sports Cap, Flip Top |
| Output | Up to 30,000 caps per hour (72 cavity) |
Manufacturing Excellence
Since 2007, we have developed specialized expertise in high-speed cap and closure molds. Our closure mold department uses advanced unscrewing mechanisms, precision-machined thread cores, and balanced hot runner systems to achieve the fast cycle times and consistent quality required by the beverage packaging industry. Each mold undergoes 8-hour continuous trial runs before shipment.
Frequently Asked Questions
Q: What is the maximum cavity count for cap molds?
A: We manufacture cap molds up to 72 cavities, achieving cycle times of 5-8 seconds for high-speed beverage closure production.
Q: Do you comply with PCO closure standards?
A: Yes. Our molds produce caps compliant with PCO 1881 and PCO 1810 standards, as well as custom closure specifications.
Q: What demolding mechanism do you use?
A: We use precision unscrewing mechanisms with servo or hydraulic drive for cap thread demolding, ensuring consistent thread quality at high cycle speeds.
Q: How do you ensure cap seal quality?
A: We use precision-machined core and cavity alignment with tight tolerances on seal plug dimensions. Each mold is tested for seal integrity during our 8-hour trial run.
